Epoxy Fiberglass Sheets
Flame-retardant epoxy glass sheet for electrical insulation structures, higher thermal reliability and demanding industrial environments.
Product details
Final specifications, performance, and supply scope are confirmed against the application requirements.
Flame-retardant epoxy glass sheet for electrical insulation structures, higher thermal reliability and demanding industrial environments.
Flame-retardant epoxy glass sheet for electrical insulation structures, higher thermal reliability and demanding industrial environments.

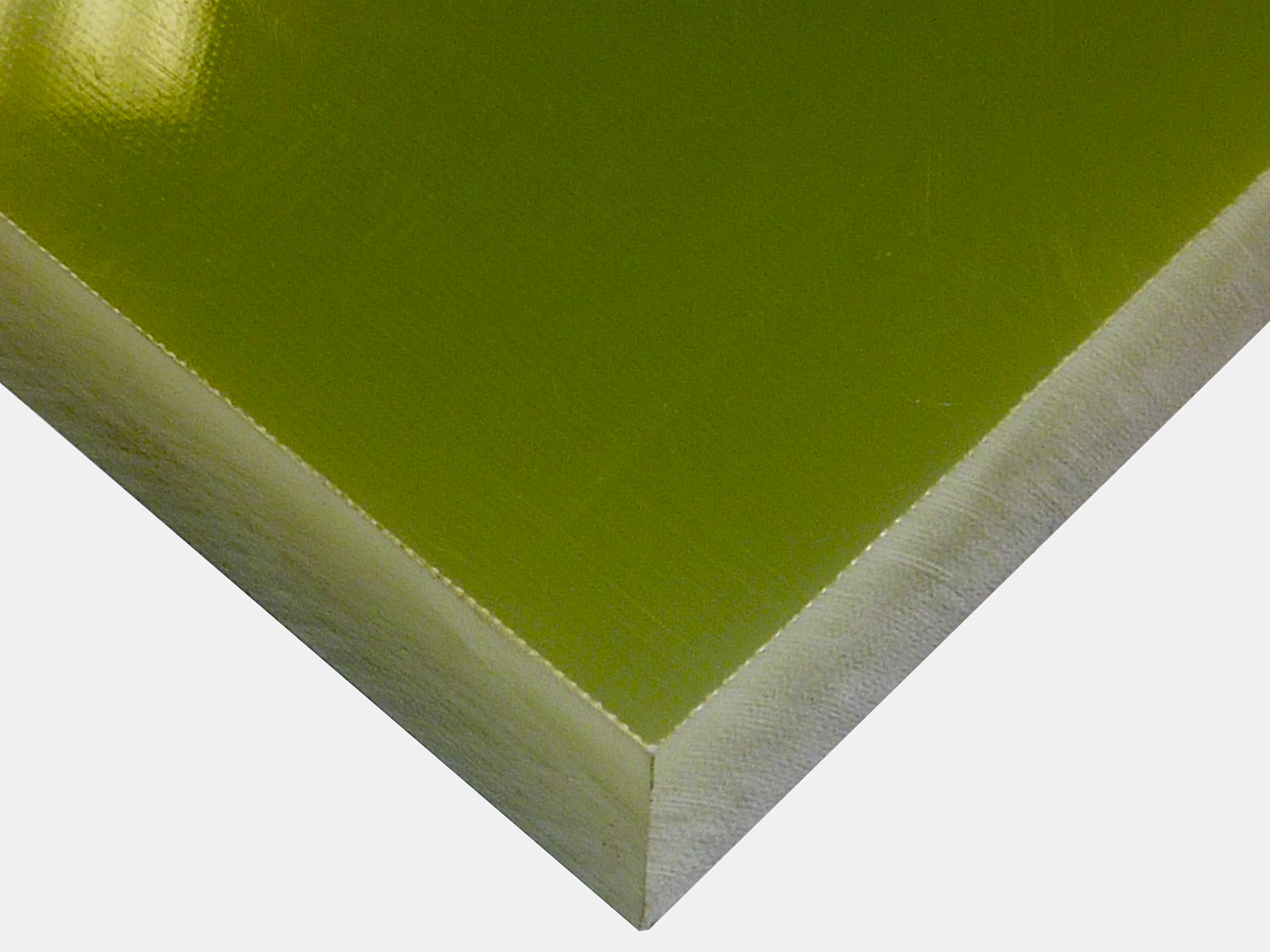

FR-4 and FR-5 epoxy glass sheets are designed for buyers who require flame-retardant performance together with strong mechanical and electrical properties. FR-4 is the well-known mainstream grade, while FR-5 is selected when higher heat resistance and long-term thermal stability are needed.
MaterialFlame-retardant epoxy resin with glass fiber reinforcement Grade FocusFR-4 for general industrial use, FR-5 for higher heat performance Key FeaturesArc resistance, dielectric stability and good machinability Typical ColorOften green or industrial natural tone
Selection guide
The page positions both as flame-retardant epoxy glass sheets and FR-5 for higher thermal demand. The exact grade definition, temperature classification, and test values must come from the applicable data sheet and standard.
No. Confirm grade, thickness, sheet size, color, tolerance, finish, and quantity together because the available manufacturing and stock range can vary by combination.
Use named standards and test methods for flame behavior, thermal classification, flexural performance, dielectric properties, insulation resistance, water absorption, and dimensional stability.
Include the drawing and revision, grade and standard, finished dimensions and tolerances, edge and hole requirements, quantity, inspection plan, documentation, and operating conditions.
Epoxy Fiberglass Sheets
General-purpose epoxy fiberglass insulation sheet with strong mechanical performance and stable electrical behavior under medium to higher temperature conditions.
Epoxy Fiberglass Sheets
IEC-style epoxy glass laminate grades for international material matching, technical replacement and export communication with industrial buyers.
Epoxy Fiberglass Sheets
High-strength epoxy glass laminate family for demanding electrical insulation, structural support and elevated-temperature service conditions.
