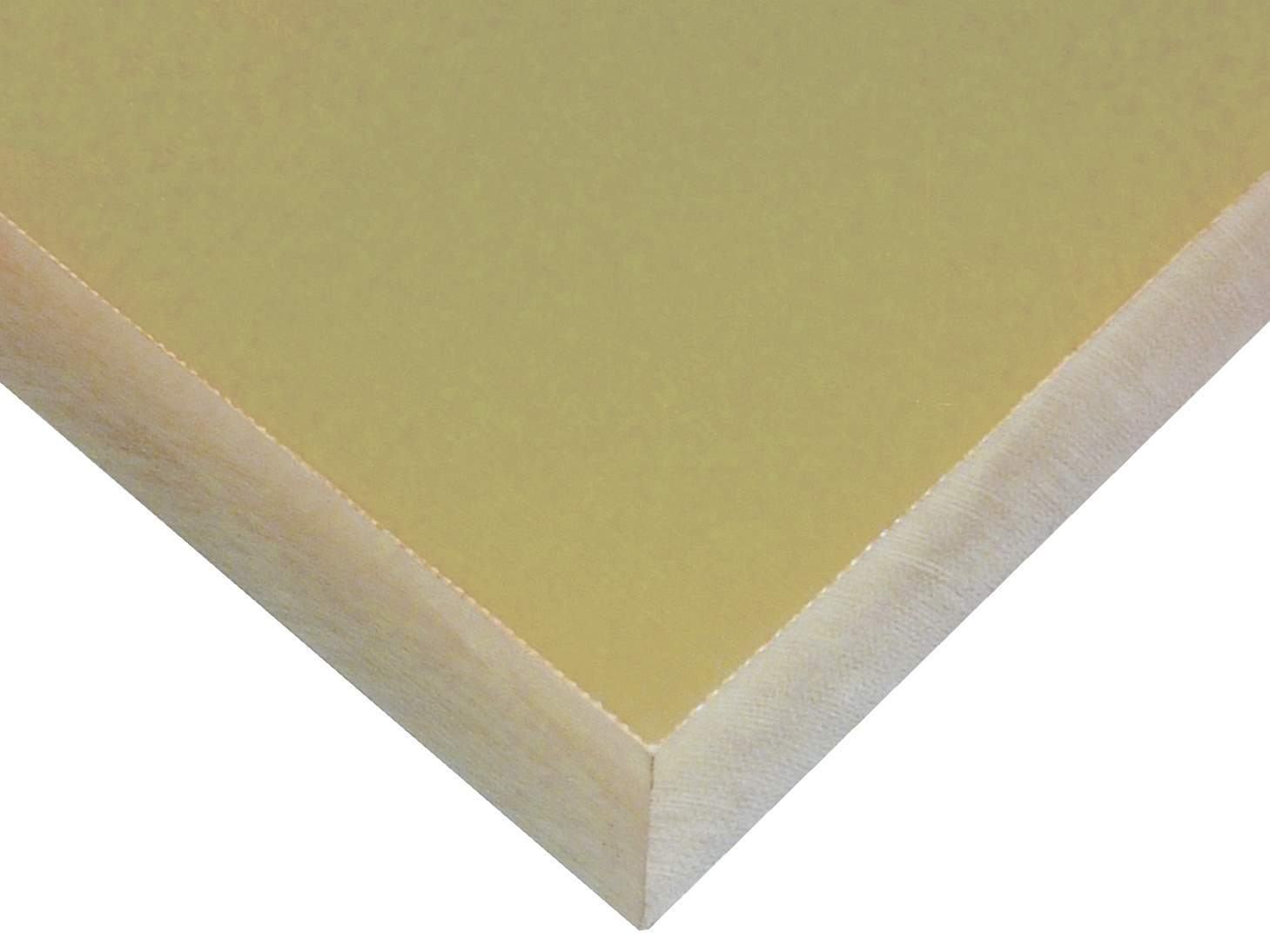

EPGC Laminates

IEC-style epoxy glass laminate grades for international material matching, technical replacement and export communication with industrial buyers.

Product Summary

IEC-style epoxy glass laminate grades for international material matching, technical replacement and export communication with industrial buyers.

How to Select Between the Grades

EPGC laminates are a technical grade family used in international material selection and substitution. This family includes grades positioned for high mechanical strength, electrical insulation, elevated-temperature service and improved thermal behavior, making it practical for overseas engineering discussions.

Material and Grade Overview

Grade FamilyEPGC203, EPGC205, EPGC307 and related epoxy glass laminate grades Reference StandardIEC naming system for export communication Key FeaturesMechanical strength, insulation reliability and heat-oriented selection options Extended ScopeAnti-static board, synthetic stone, halogen-free board, prepreg and machined insulation parts

Available Grades and Dimensions

• Thickness range: 0.1 mm to 200 mm
• Standard sheet sizes: 1020 x 1220 mm, 1020 x 2040 mm, 1220 x 2040 mm and 1220 x 2440 mm
• Maximum size: 1220 x 3100 mm
• Available colors: N color (water green), UV yellow and BK black
• Other colors can be customized

Typical Applications

• Projects where customers purchase by IEC or international laminate grade names instead of domestic codes
• Motor, transformer, switchgear and industrial electrical insulation structures
• Applications requiring engineering discussion around heat class, strength and dielectric performance
• Export quotations that need a clearer bridge between Chinese and overseas material terminology Epoxy Fiberglass Sheets | Product overview
