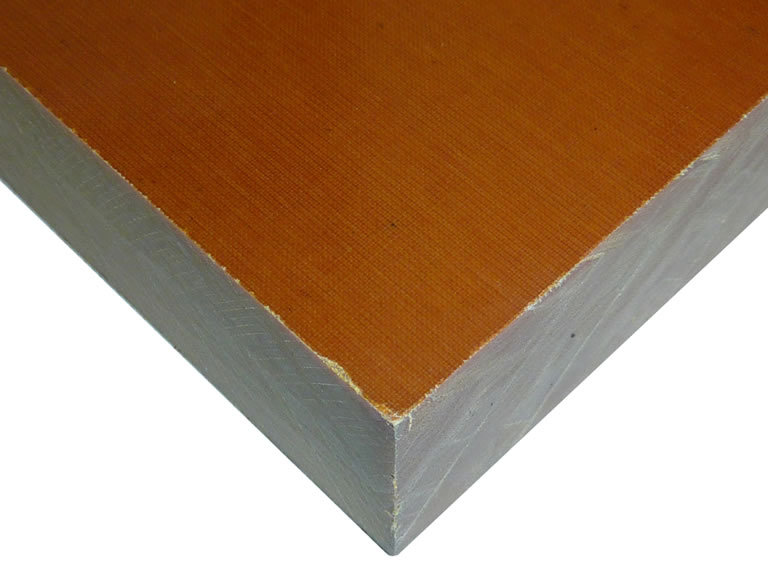

3025 Phenolic Cotton Cloth Laminate

Machining-friendly phenolic laminate for structural insulation parts, wear-resistant components and oil-related mechanical applications.

Product Summary

Machining-friendly phenolic laminate for structural insulation parts, wear-resistant components and oil-related mechanical applications.

How to Select Between the Grades

3025 phenolic cotton cloth laminate combines insulation performance with improved toughness and machinability. Compared with paper-based grades, it is better suited to parts that need both mechanical support and electrical separation in real industrial service conditions.

Material and Grade Overview

MaterialPhenolic resin reinforced with cotton cloth ProcessingGood turning, milling, drilling and general machining performance Key FeaturesBetter mechanical strength, wear resistance and oil resistance Product FormSheet material for machined insulation and structural parts

Available Grades and Dimensions

• Sheet thickness range: 0.5 mm to 200 mm
• Sheet width: 1020 mm and 1220 mm
• Sheet length: 2040 mm, 2200 mm and 2440 mm
• Coarse cloth sheet minimum thickness: 3 mm
• Fine cloth sheet minimum thickness: 0.5 mm

Typical Applications

• Machined bushings, gears, sliders, guide rails and wear blocks in industrial equipment
• Electrical structural insulation parts that also require strength and shape stability
• Oil-resistant support parts for motors, pumps and general machinery
• Customers needing a balance of insulation, toughness and machining efficiency Phenolic Laminates | Product overview
